Architecture

The Autopilot Core operates as an asynchronous, event-driven control plane for automatic code repair and AI operations across the organization's repositories. Rather than integrating deeply into every individual codebase, it utilizes a federated intake model mediated by standard GitHub Issues and GitHub Actions.

High-Level Workflow

At its core, the architecture relies on a series of decoupled GitHub Actions workflows. A failure in an opted-in repository triggers an issue in autopilot-core, which acts as a central queue. An operator then processes this queue and proposes fixes.

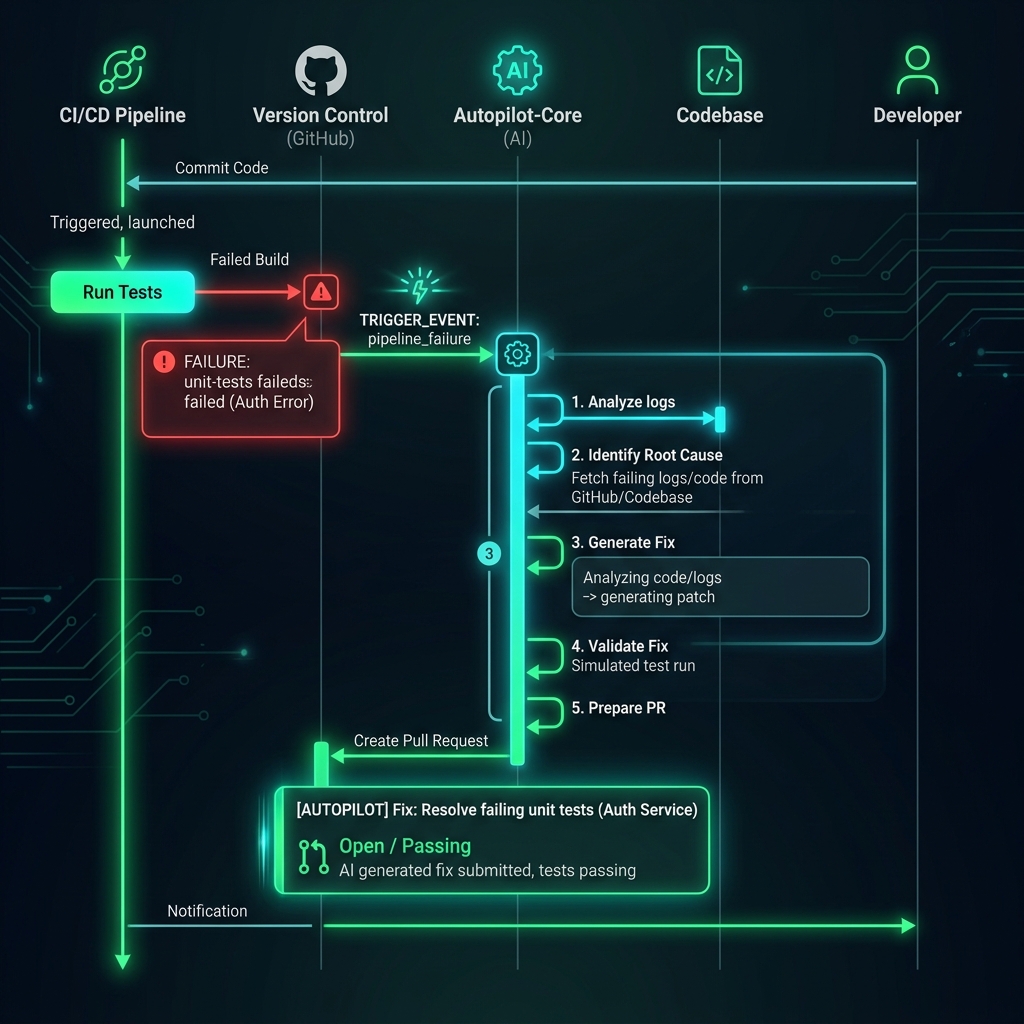

Visual Diagram

sequenceDiagram
    participant Repo as Opted-in Repository
    participant Core as autopilot-core
    participant Codex as AI / Codex

    rect rgb(30, 30, 30)
    Note over Repo,Core: 1. Intake & Triaging
    Repo->>Repo: CI/CD Pipeline Fails
    Repo->>Core: Workflow Run triggers `autopilot-create-issue.yml`
    Core-->>Core: Issue created with labels `autofix + queued`
    end

    rect rgb(30, 45, 60)
    Note over Core,Codex: 2. Operator Execution
    loop Every 5 Minutes (Schedule)
        Core->>Core: `autopilot-operator.yml` scans for `autofix + queued` issues
        alt Issue has `risky` or `needs-design` label
            Core-->>Core: Skip execution
        else Valid Issue
            Core->>Codex: Prompt with issue details and codebase context
            Codex-->>Core: Generate minimal patch/fix
        end
    end
    end

    rect rgb(30, 60, 45)
    Note over Repo,Core: 3. Delivery & Verification
    Core->>Repo: Commit fix to new branch
    Core->>Repo: Open Pull Request
    Repo->>Repo: PR triggers CI/CD validation
    Repo->>Repo: Auto-merge or await human review
    end

System Components

  1. Intake Workflows (autopilot-create-issue.yml)
  2. Installed via autopilot-org-installer.yml into target repositories.
  3. Listens for workflow_run failure events.

  4. Formats the failure context (logs, failing tests) into a structured GitHub issue payload and dispatches it to the autopilot-core queue.

  5. Operator (autopilot-operator.yml)

  6. Runs periodically on a self-hosted environment (e.g., Windows runner).
  7. Polls autopilot-core issues.
  8. Provides context to the ci-autopilot runtime agent.

  9. Manages communication with the Codex / AI endpoints to generate a patch.

  10. Installer (autopilot-org-installer.yml)

  11. Scans the GitHub organization for repositories containing the .autopilot/opt-in marker.
  12. Distributes updates to the intake workflows, ensuring standard reporting capabilities without manual setup per repository.

Design Philosophy

  • Decoupled State: The queue lives in GitHub Issues. There is no external database, meaning all state transitions are visible and auditable.
  • Fail-Safe Processing: The operator acts with least-privilege tokens (ORG_AUTOPILOT_TOKEN), ensuring only opted-in codebases can be mutated.
  • Human-in-the-Loop Fallback: Pull Requests generated by the system are just like human PRs. They run standard CI and can require mandatory human review if the repository policy dictates.
