Architecture

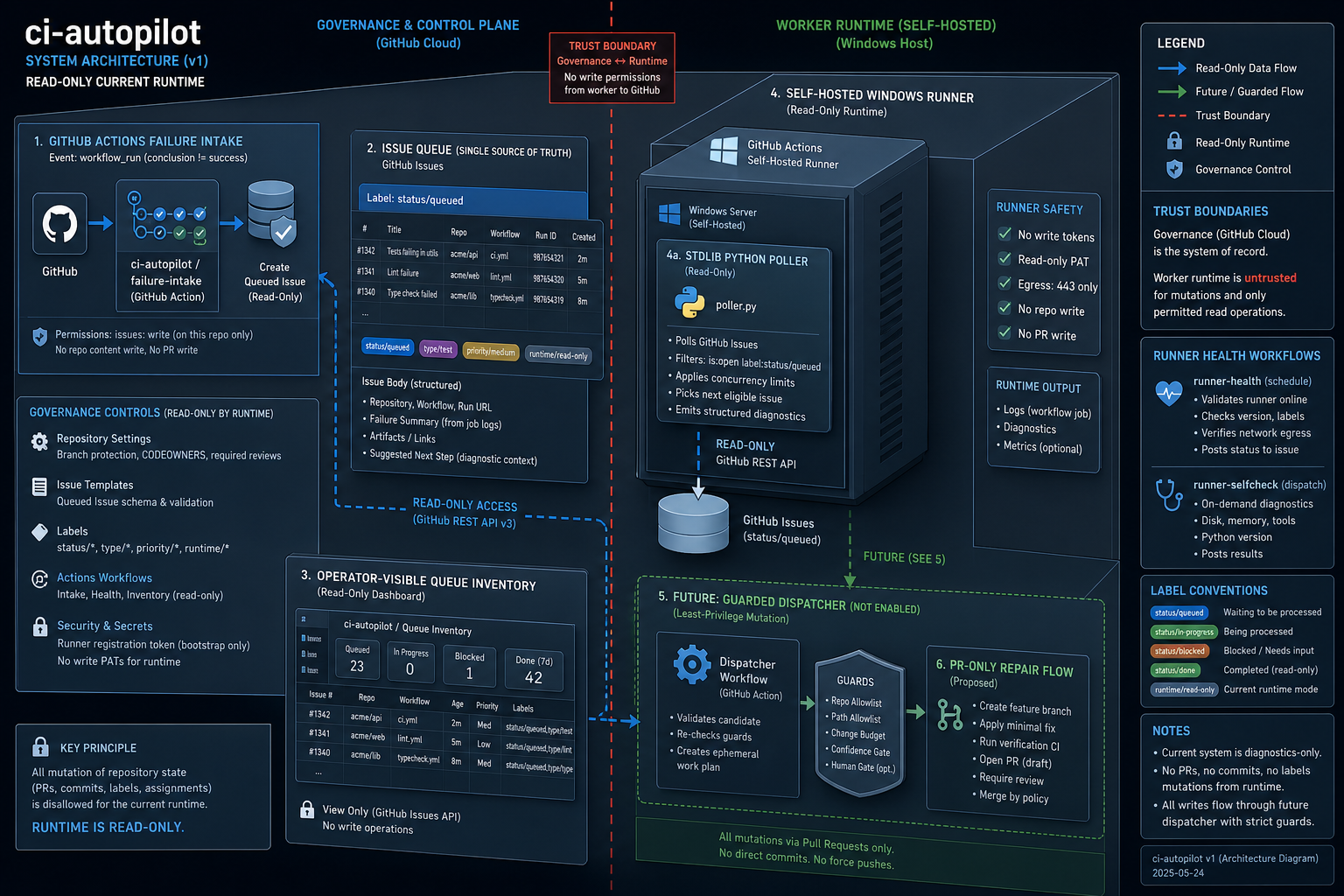

Architecture Diagram

ci-autopilot packages the worker/runtime side of the platform. The runtime surface is deliberately small: agent/poll_once.py is a Python 3.12 stdlib-only program (no external dependencies) that runs on a self-hosted Windows runner via the fixer.yml workflow, polling the issue queue and listing queued repair tasks for operator visibility.

flowchart LR
    A["GitHub Actions failure\ndetected"] --> B["autopilot-failure-intake.yml\n(intake workflow)"]
    B --> C["Issue queue\n(runner-offline label)"]
    C --> D["agent/poll_once.py\n(Python 3.12, self-hosted Windows runner)"]
    D --> E["Operator visibility\n(read-only inventory)"]
    E -. "future guarded dispatcher" .-> F["PR-only repair path"]

Core components

  • autopilot-failure-intake.yml — intake workflow triggered on workflow_run failure events; creates a queued issue.
  • autopilot-create-issue.yml — creates GitHub issues via actions/github-script when monitored workflows fail.
  • fixer.yml — runs the read-only agent/poll_once.py queue inventory on the self-hosted Windows runner.
  • agent/poll_once.py — Python 3.12 stdlib agent; validates repository input and inventories the issue queue.
  • runner-smoke-test.yml / runner-health.yml — smoke-test and scheduled health check for the self-hosted runner.

Trust boundaries

  • Clear separation of concerns: issue intake and governance stay in autopilot-core; worker execution and any future guarded repair dispatch stay on this repo's worker boundary.
  • The agent is intentionally read-only today — it does not execute issue content, mutate repositories, or dispatch Codex. Guarded autonomous repair dispatch is tracked as an open finding (see Decisions), not shipped functionality.
  • The self-hosted runner model supports enterprise network boundaries and least-privilege token handling; this repo provisions no cloud infrastructure.
